Hi guys, this is Rajesh from elearninginfoit.com; today, we will discuss how to download and install SQL Express edition.

Whether you install your edition on a physical or virtual server doesn’t matter. In this step, you can perform it anywhere.

This article may be a little bit longer, but you will definitely get all the information in a single piece, so either you can directly jump to a particular point or follow the table of contents.

What is SQL?

Data is all around us. We used to store data on paper in giant filing cabinets, but eventually, we stored them online in databases. How do we easily pull the data? We want to look at it. That’s what SQL is for. It’s a language that communicates with databases.

Credit: edurekaIN Youtube Channel

SQL stands for structured query language people call it SQL or sequel. In short, SQL is the language used to communicate with databases, databases that store your data.

If you want to pull, edit, or add information to a database, you can use the language of SQL. But what does SQL work think of a database like?

Data tables like filing cabinets and data like files, this warehouse or database stores data. The warehouse database was built using coding languages like C or C++, or Java.

Now imagine regular people need to access the files. How do they do that? Option one, you could have a storefront built into the warehouse so that customers can ask for, add, and delete files, but essentially, you are making something that takes a lot of time in the real world.


What is SQL Express Edition

Let’s talk about the SQL server edition. SQL has three significant editions which are used in the market the Express, Enterprise, standard, and developer editions,

So these 4 editions using the market Express edition are free for up to 10 GB, so if you have a small business

SQL Server Standard, Web, Enterprise, Developer, and Express

If you are using a specific application that requires 2 to 3GB of space on the database side, it is free, but if you need something large-scale that case you have to upgrade your Express edition to standard or Enterprise edition.


SQL Express Edition System Requirement

Under the system requirement, hardware, software, and network so basically network is entirely up to you because whatever application you implement with SQL, you have to understand what ports are important port basically, SQL work as a port 1433 1434. It’s also customizable, so you have to define it according to your requirement.

Credit: MizaTube Youtube Channel

SQL Express Edition Hardware requirements

ComponentRequirement
Hard DiskSQL Server requires a minimum of 6 GB of available hard-disk space.
InternetInternet functionality requires Internet access (fees may apply).
Memory(RAM)Express Editions: 1 GB
Processor Speed2.0 GHz or faster
Processor Typex64 Processor AMD/Intel
MonitorSQL Server requires Super-VGA (800×600) or a higher resolution monitor.
SQL Express Edition Hardware requirements

SQL Express Edition Software requirements

ComponentRequirement
Operating systemWindows 10 TH1 1507 or greater
.NET FrameworkMinimum operating systems include a minimum .NET framework.
Network Software Named Pipes, and TCP/IP.
Server core supportWindows Server 2016 Core or greater
SQL Express Edition Software requirements

SQL Express Edition System Hardening

System hardening is very important to any implementation doesn’t matter the database if you are going for the other application which is based on Linux or Windows doesn’t matter make sure your platform should be ready with the latest patch and all environmental compliance should be

SQL Express System hardening
  1. up to date your operating system with the latest patch to protect against critical vulnerabilities and unknown issues
  2. Apply your SQL server with the right naming conversion policy according to your environment.
  3. At the Sequel server operating system in the domain environment, this is optional if you have one.
  4. Assign the static IP
  5. This is not recommended but yeah during the installation you have to stop your antivirus and a host-based firewall.

How to Download SQL Express Edition

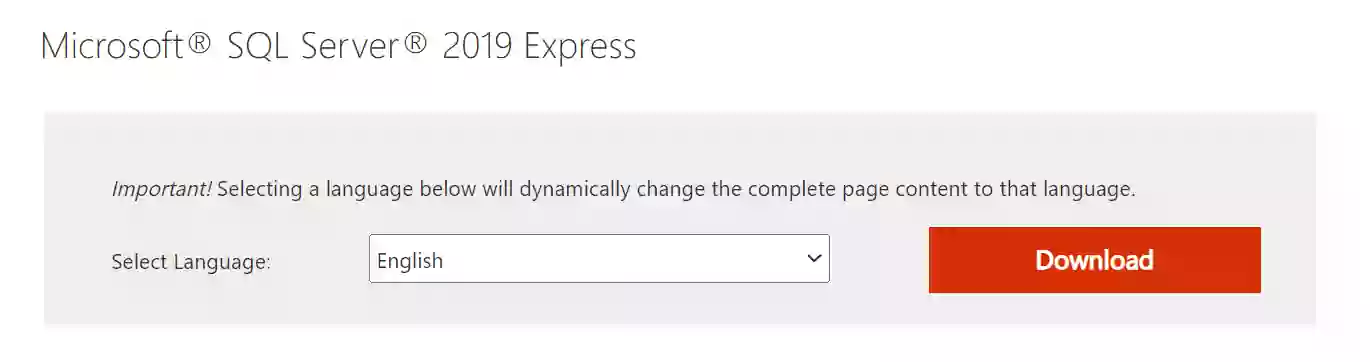

In this section, I will provide you with the download link. How can you download the SQL Express edition? It is an online installer that shows that the internet is required. You can also use the offline installer, but I highly recommend going with that online installer because in case you download the offline installer some non-official sites are made with malware and spyware risk as a security risk I am highly recommended for go with that online installer because it’s directly downloading from the Microsoft server online installer. I will give you that link so you can download it.

SQL Express Server Download
SQL Express Server Download

SQL Express Release notes

As per the best practice, if you are going to implement any software, application, database, etc. make sure must to read the release not because that everything is mentioned in the release not you are going to install it is supported or not supported is something critical issue known issues or what is that new release basically that new changes and also all our information is mentioned in release not.


How to Install SQL Express Edition Step by Step

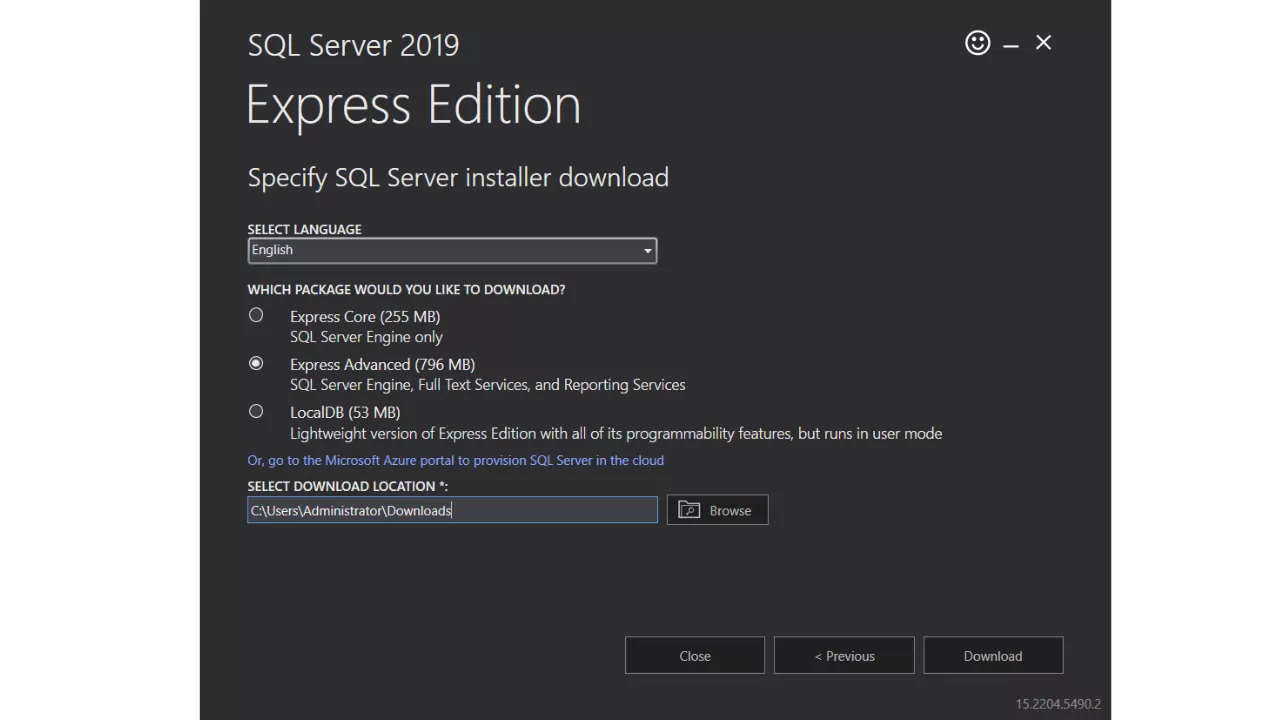

Now I am going to execute that SQL Express installation step by step. First, you have to select your language and select the location where you want to store this download file. According to your requirement, you have to select the package and click to download.

Credit : Muhammed shafi Kandoth youtube channel
  • Express Core (SQL Server Engine only)
  • Actress advanced (SQL server engine full-text service and reporting service)
  • Local DB(lightweight version of actress addition with off it is programmability feature but Run is user mode)

SQL Server Expres Download

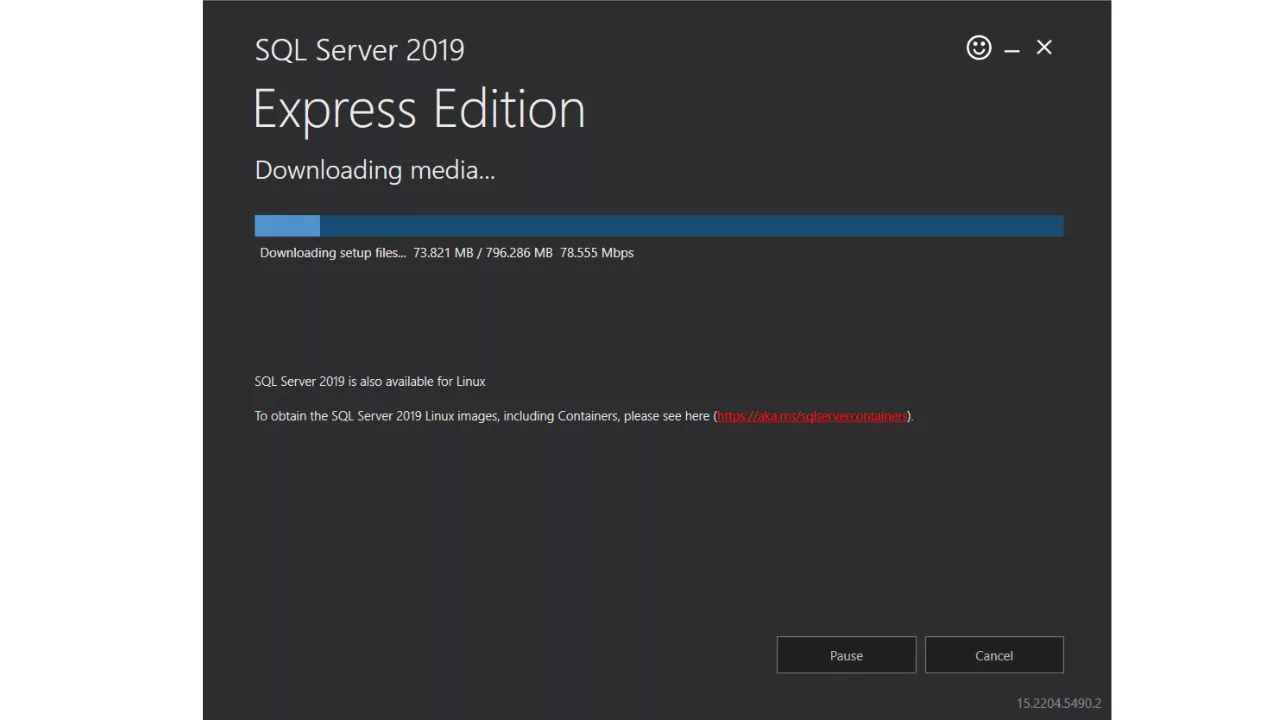

According to internet speed, it will not take much time. I have selected the advanced package size is around 796 MB.

SQL Server Expres Download online

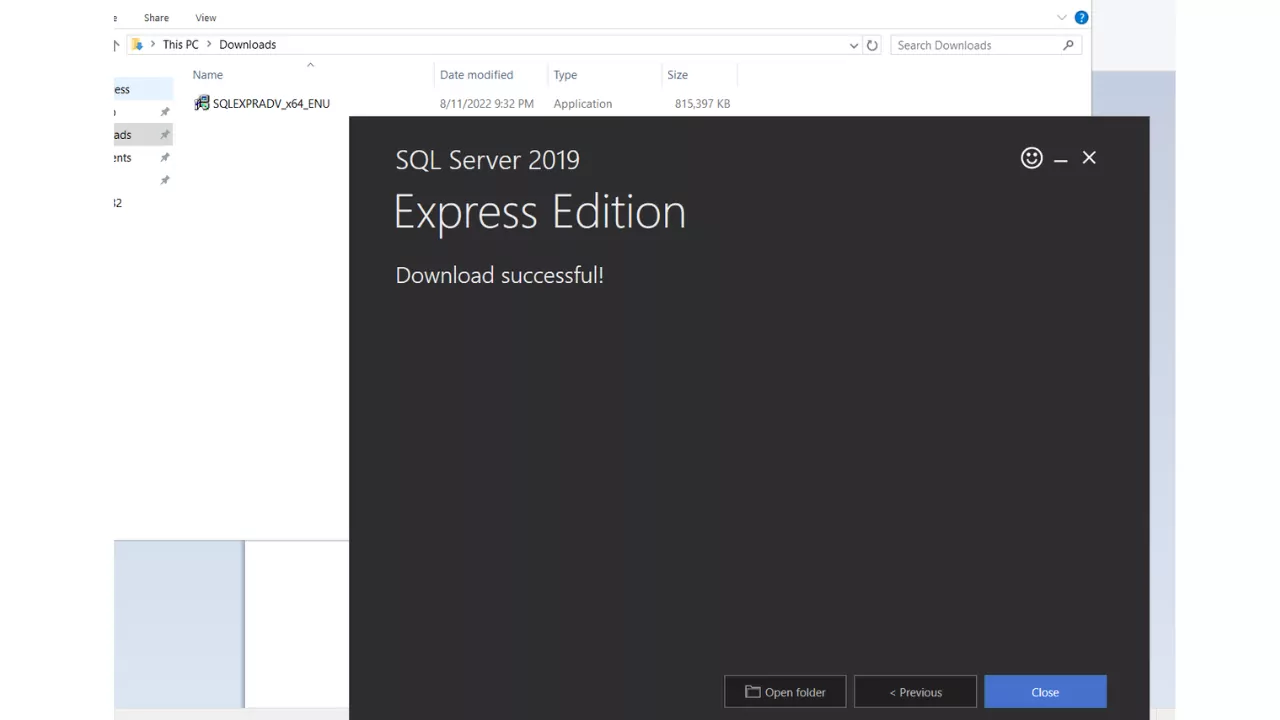

Once your download is complete you will see a message like a download is successfully done and validate whether the location file is successfully downloaded or not.

SQL Server Expres Download local system

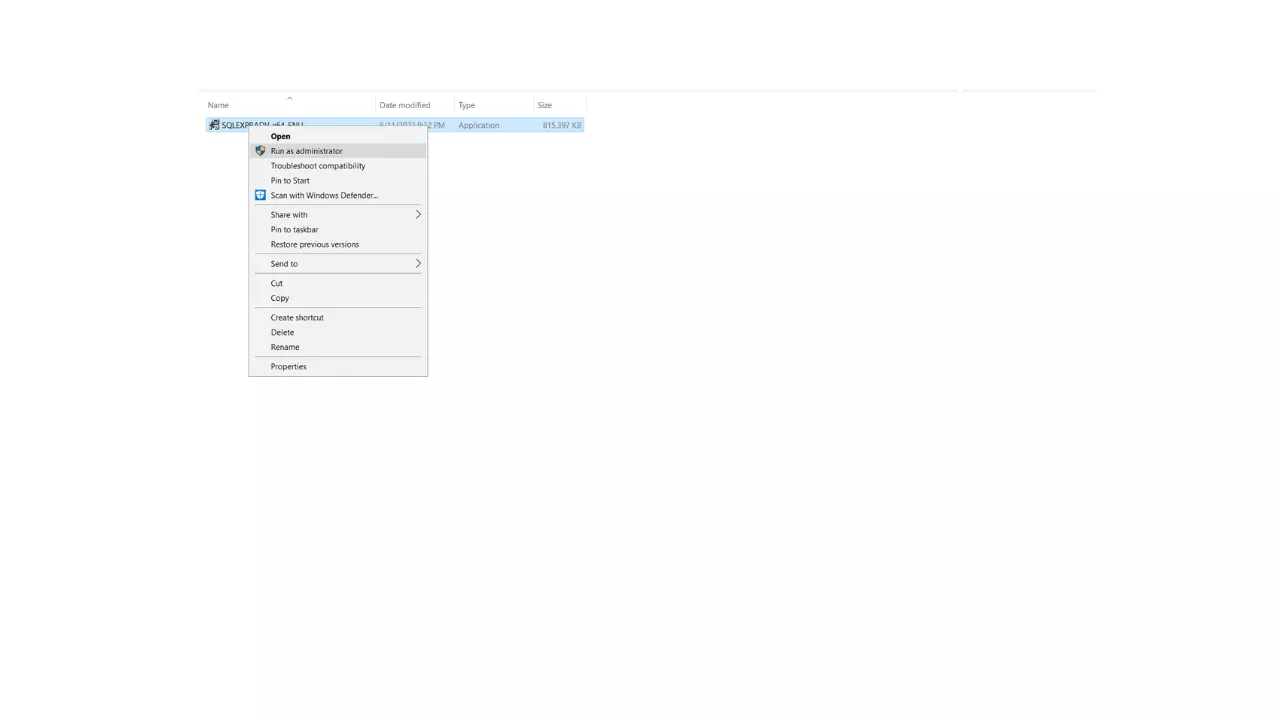

If the file is successfully downloaded you have to right-click when as administrator

Run SQL Server Expres Download

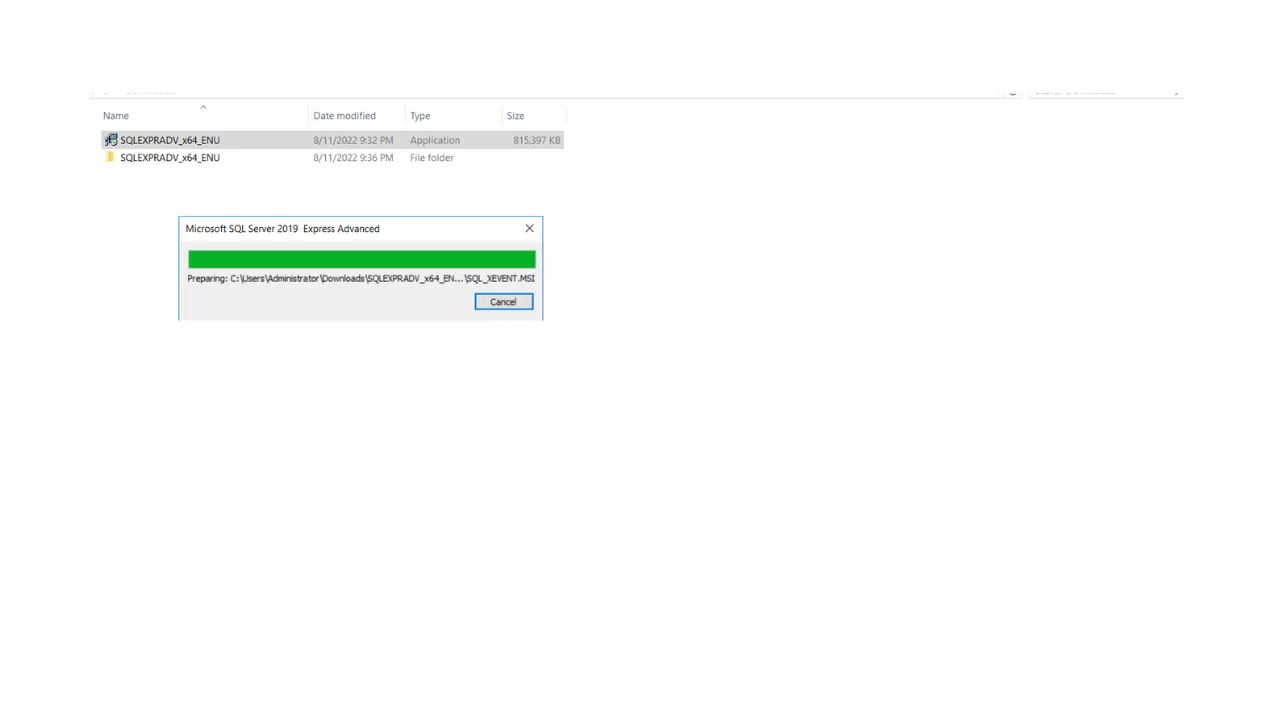

Once you run as administrator it will extract in that location and create one separate folder with the same name.

SQL Server Expres Download run

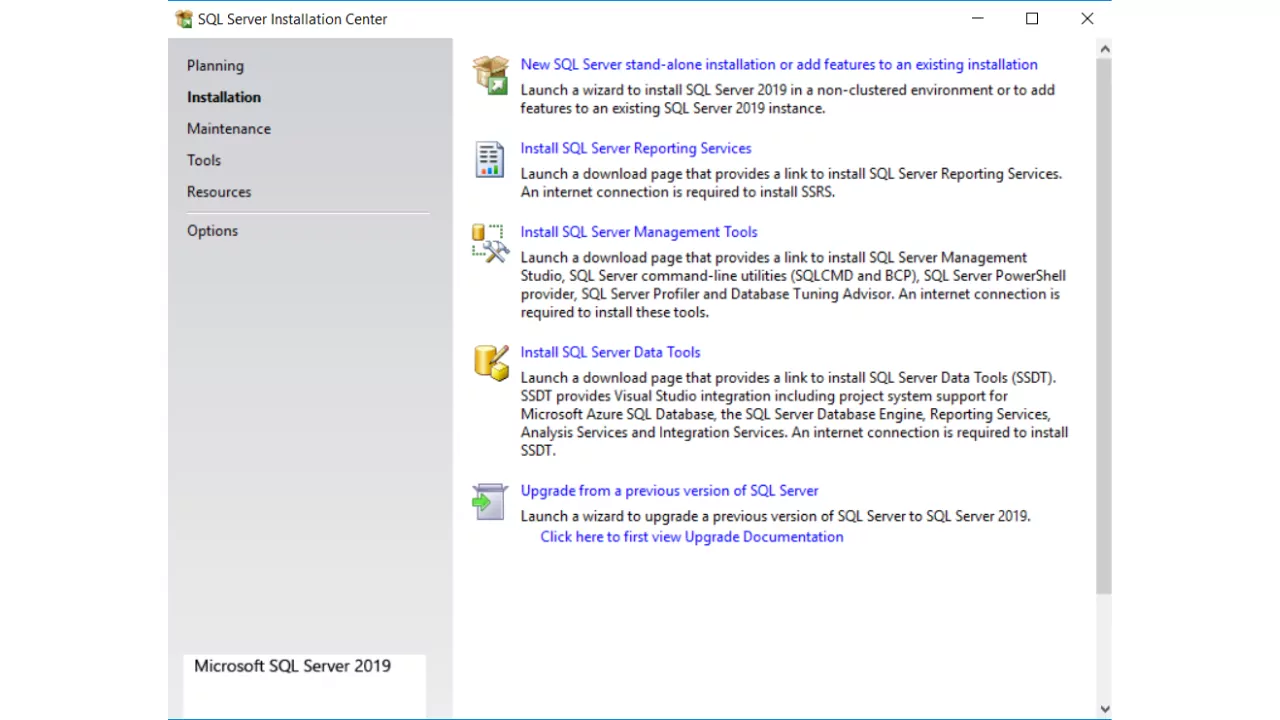

Open the new window and there the mention is the installation and the installation there is the first option is New SQL server stand-alone installation you have to click

Install SQL Express Edition

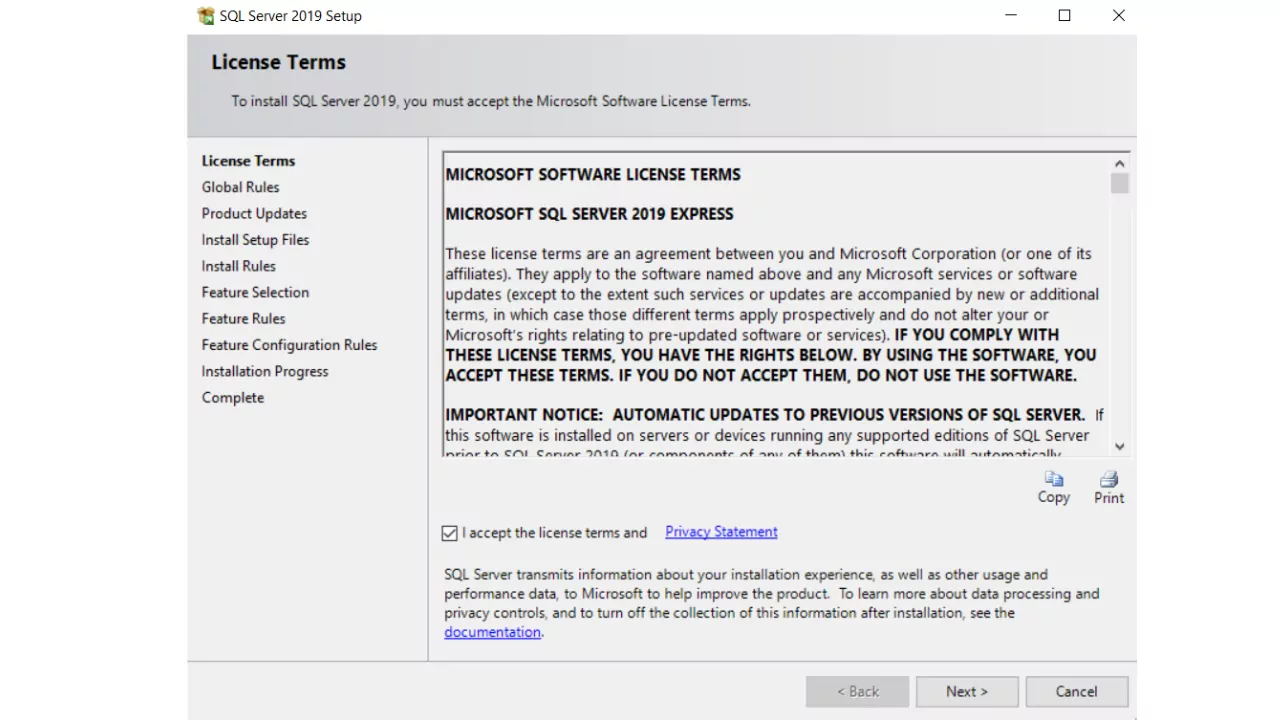

Accept the Microsoft licence agreement

SQL Server Expres installation

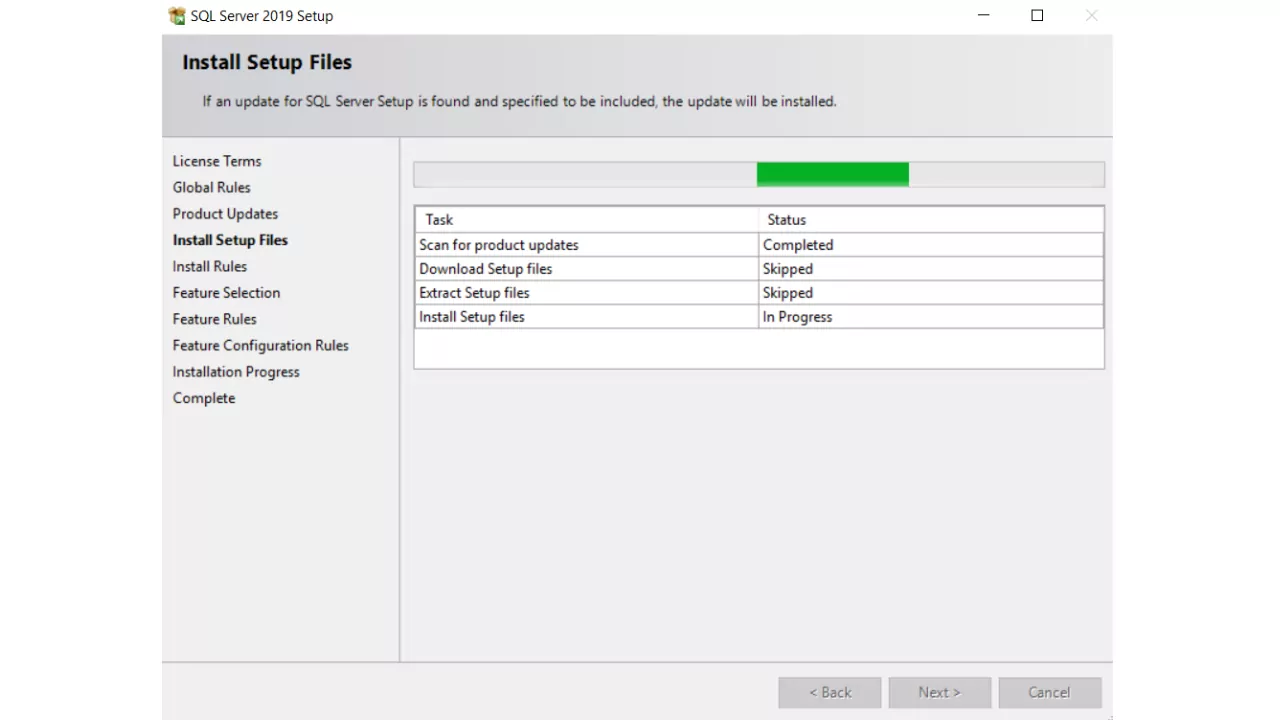

It will check the update and required file from the internet so make sure the internet is enabled on your platform or server otherwise it will not communicate to Microsoft server so it will give you that error event that you can skip.

SQL Server Expres online check

The next one is to pre-check before installing the sequel whether all requirement is fulfilled or not. I am using the domain controller with the same server that’s why showing me that the computer domain controller is a warning you can ignore this because Microsoft highly recommended don’t install the active directory in the same Sequel server

Pre check SQL Server Expres Download

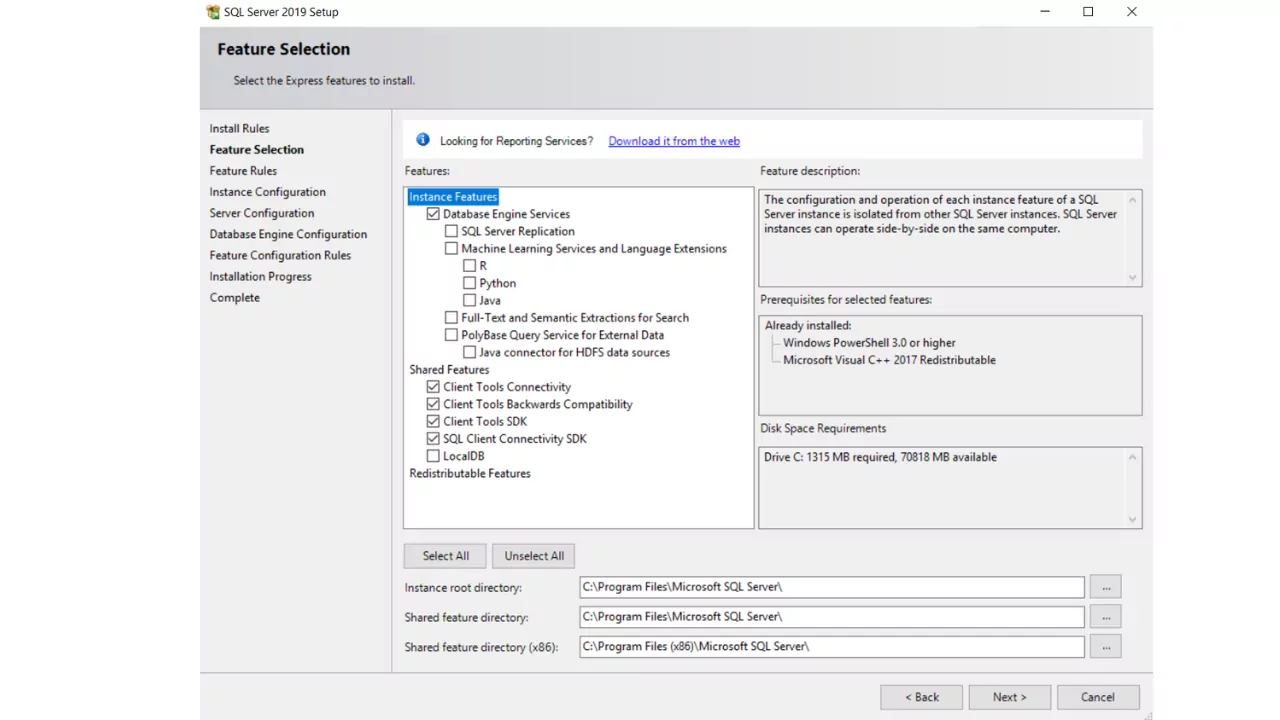

So basically this is a feature that is completely up to you what feature you want if is that and a normal use case then you have to database engine and backward compatibility is enough but if you have any specific requirement you have to choose this.

SQL Server Expres Download salect

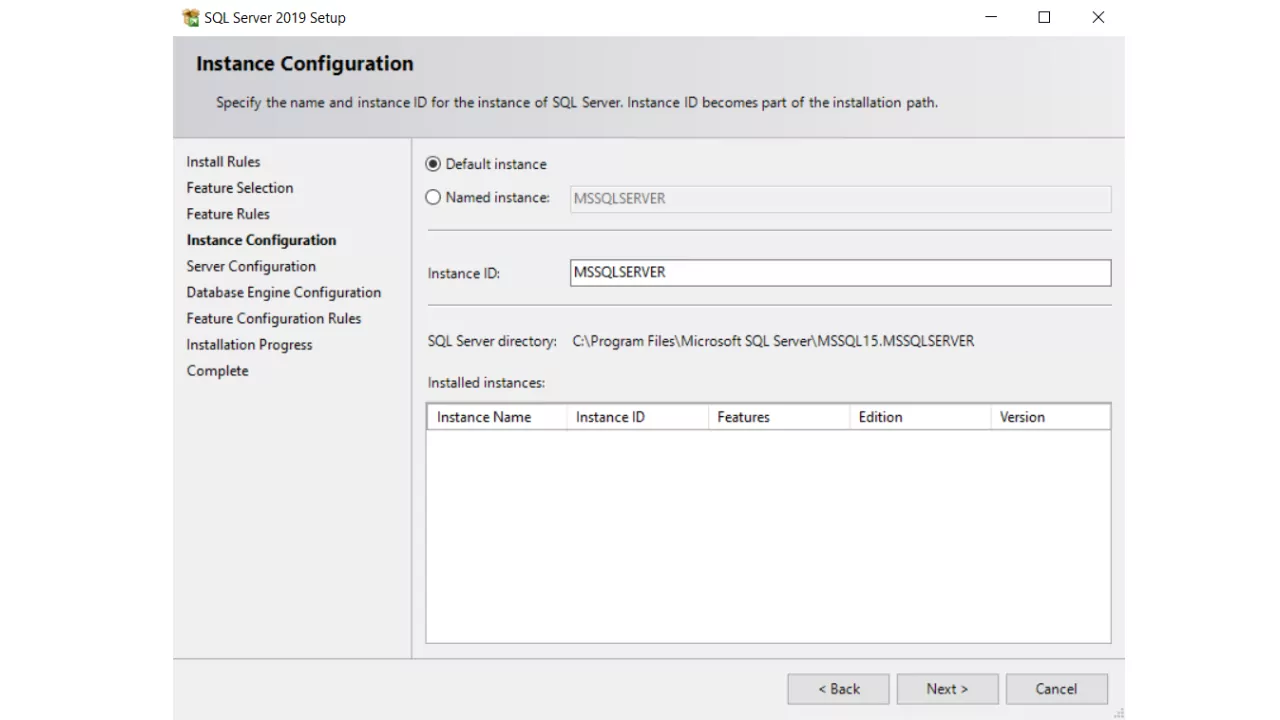

It completely depends on your naming convention policy you can keep it as default either your company name in the conversion policy you can put any name.

SQL Server Expres database name

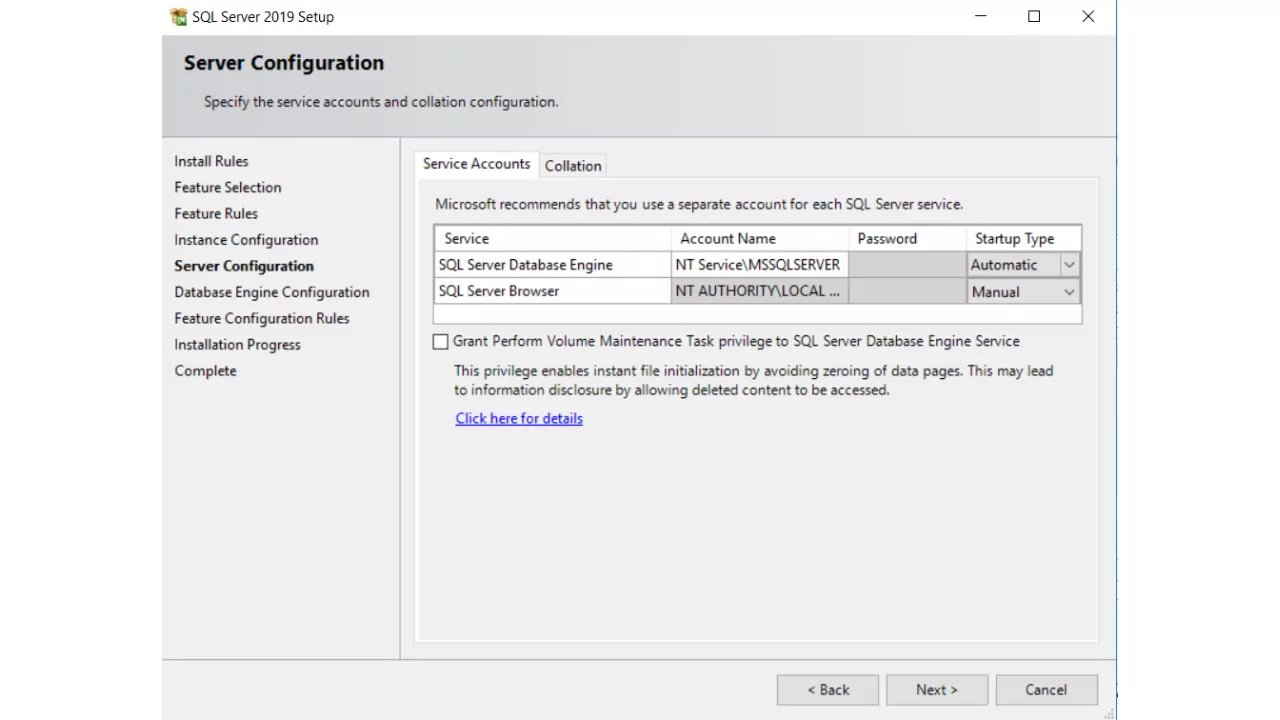

This is a service status showing the database engine service status is automatic and the browser service is manually why is set as manually if you are installing any application during the installation you have to enable the browsing service ok, and necessary until not make sense to enable the browsing service because it’s vulnerable.

SQL Server Expres Services

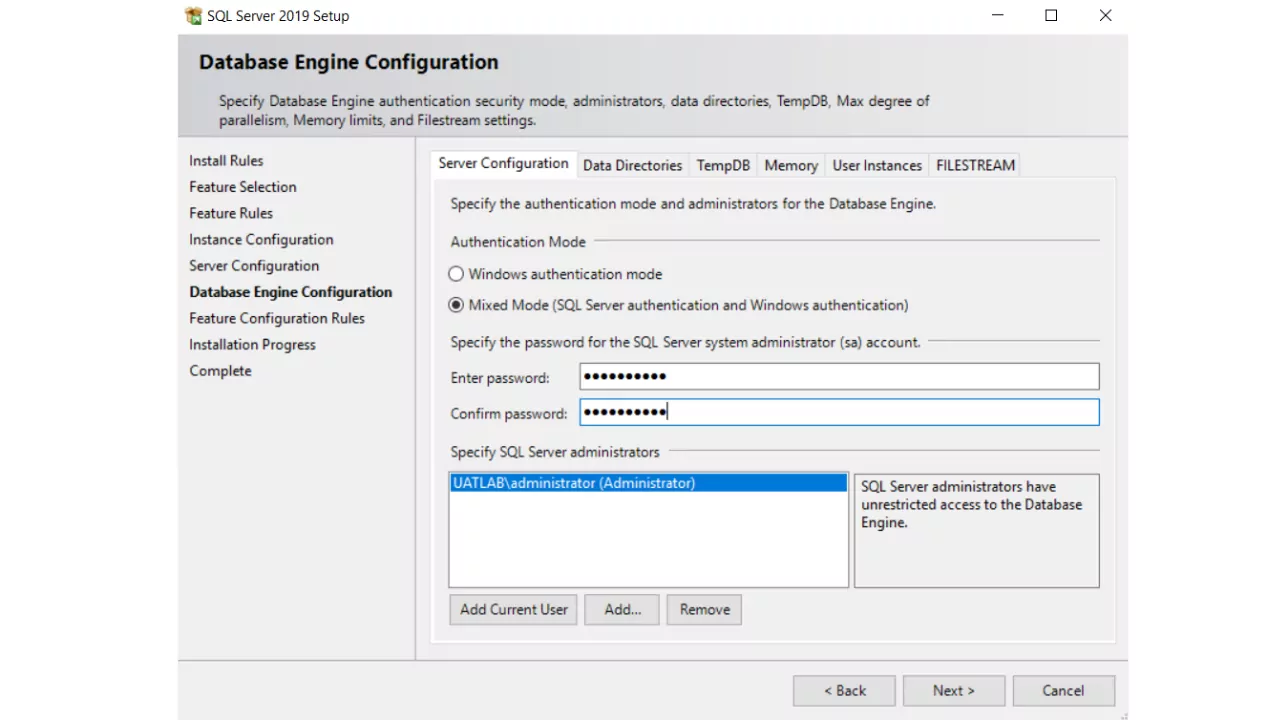

This is a very important point in the mixed mode so if you are installing the sequel you have to enable the user can log in with the windows account with the SA account so make sure you have to set the proper password with the SA account.

if you integrate the active directory with the same server then you have to add the domain user account as well.

SQL Server Expres user account adding

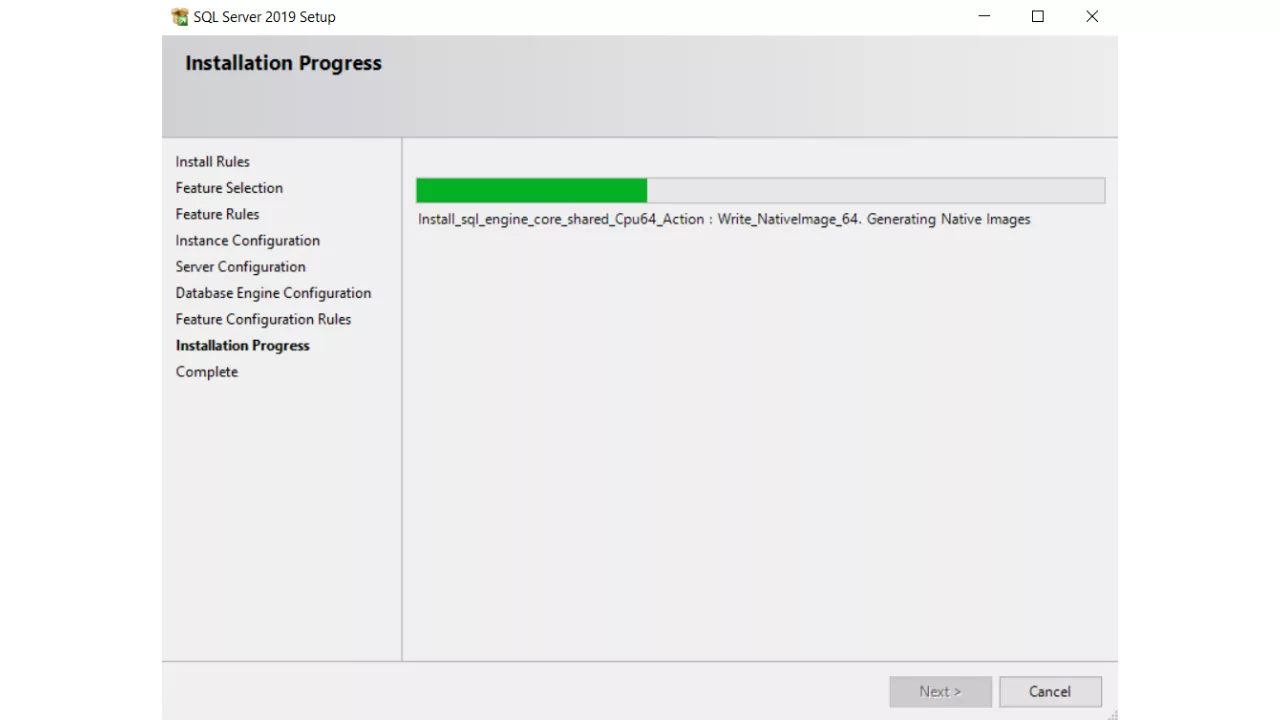

Now the installation is starting and you can see the progress it will take around 30 to 40 minutes according to your resource.

SQL Server Expres installation in windows

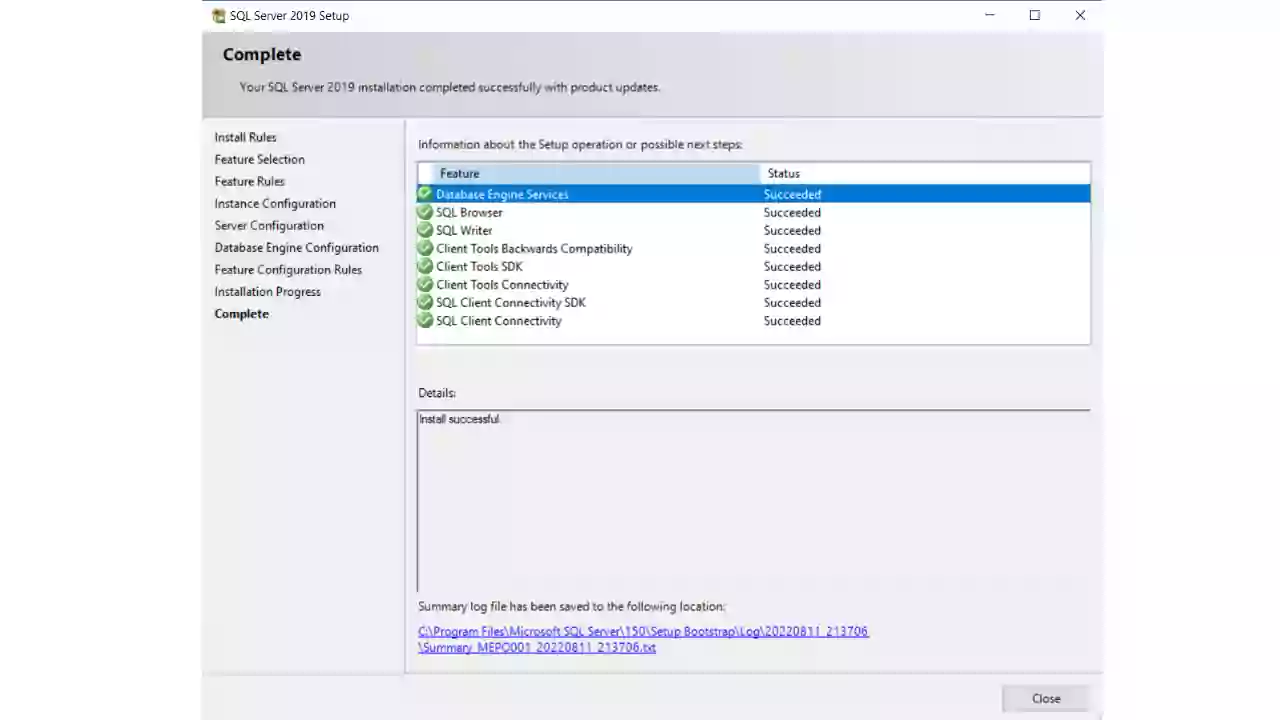

Now the installation is successful done at the best practice any application Any modification or change this is done in that system side you know after installing and installing make sure system should be a reboot.

SQL Server Expres installation is done

After reboot you have to install sequel management Studio this is the tool to you can manage your database.


what is difference between sql server express and enterprise

SQL Express edition have some limitation 10gb but the Enterprise no any limitation event that additional tool is there.

What is difference between SQL Express and SSMS?

SQL Express is a database and Sequel server management Studio is a tool to manage your database less example you take the backup and create some query or you execute some query that case is required Sequel server management Studio but the Sequel server actress work and the management Studio work is totally different.

What are the limitations of SQL Server Express?

Under the express edition there is the you can use only 10 GB after 10 GB you have to upgrade it

What can I do with SQL Express?

If you have small business that case you can use that Express edition SQL Express because this no charge no no any licence cost it totally free e in 10 GB

how to download SQL express offline installer

You can use the same steps with the online and offline installer exe execute it and save the download file and you can transfer that file anywhere so this is also worked as a offline installer

Is SQL Express free for commercial use?

Yes, you can use it for commercial purposes and the express edition. Still, after 10 GB, you need to buy a dedicated licence like the standard, Enterprise, and Developer editions. Whatever your requirement you have to buy it but before 10 GB you can use it without paying anything.

SQL Express 2019 download offline installer

This is the link you can download the offline installer of SQL server Express 2019, but they make sure this is the official site. If this link is not working, don’t download any offline installer from a third party. Always use the Microsoft official website.
